Instructions – Competition

For the competition events, please follow the instructions:

1. Setup preparation

  • If you have a BASEplate, place it on a solid and flat ground. Fix it with the attached screws. Place the PATpad into the BASEplate with arrow pointing to the position of the Display.

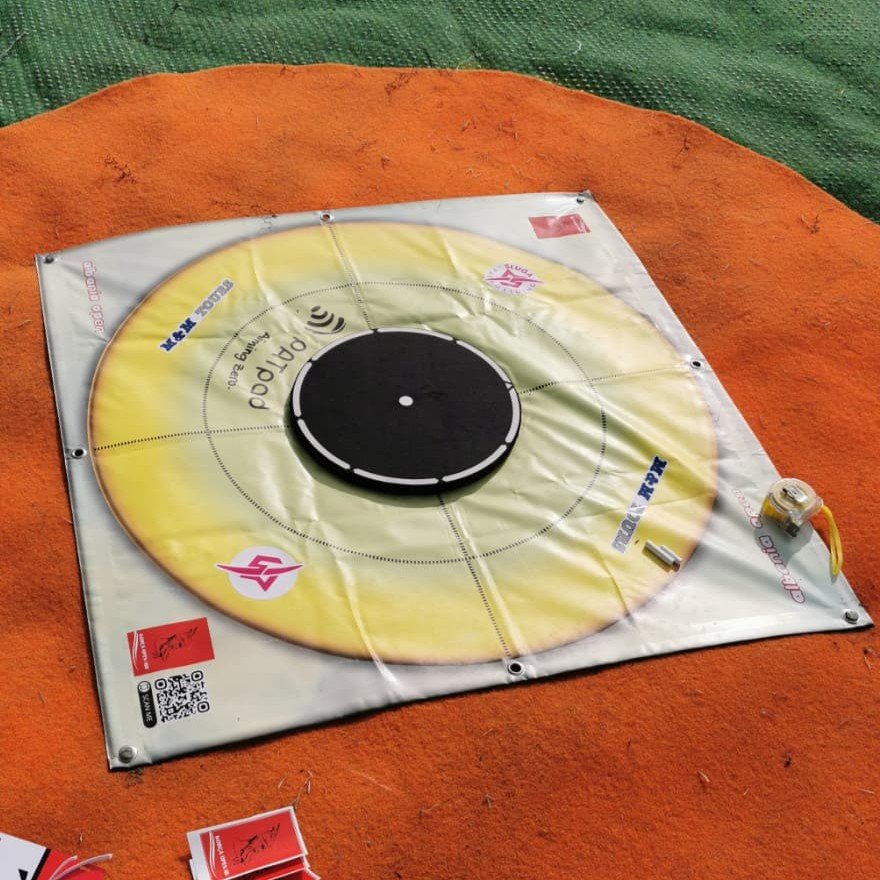

  • If you have a protection Lining, you can attach the PATpad using velcro tape.

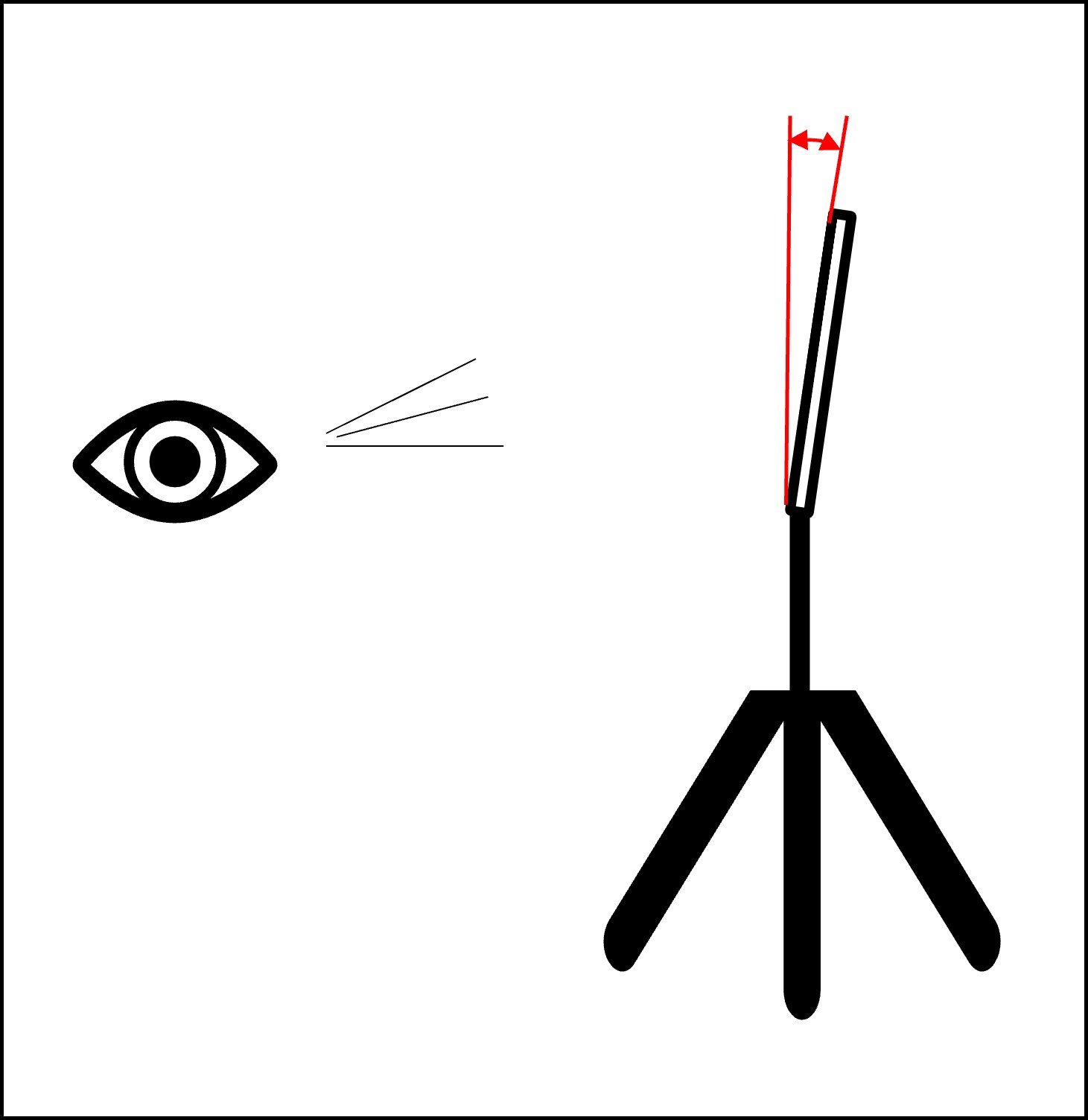

  • Place the Display on a stand and tilt it slighlty back to optimize the visibility.

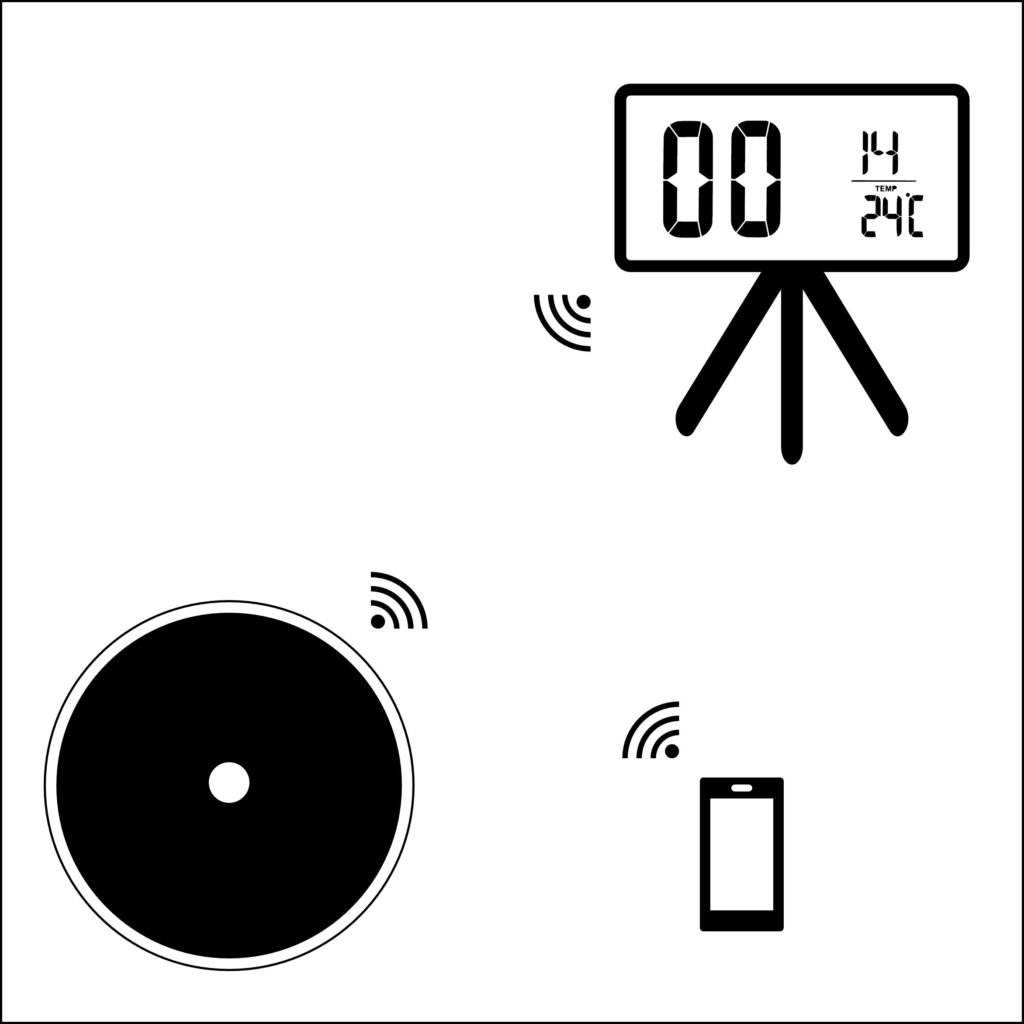

2. Connection PATpad/Display/Mobile

  • Establish the connection between the PATpad and the Display. You can use 2 Displays in parallel.

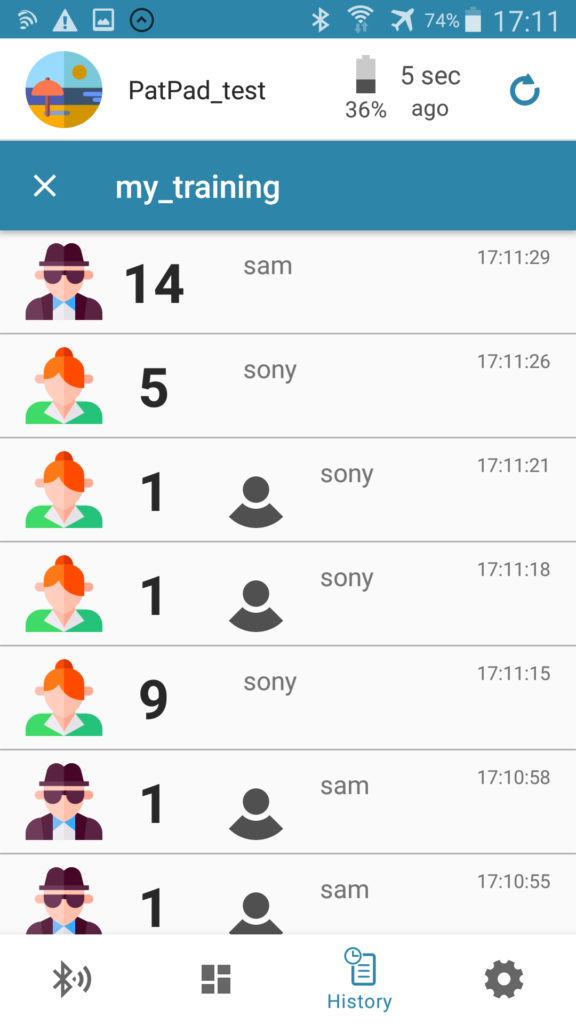

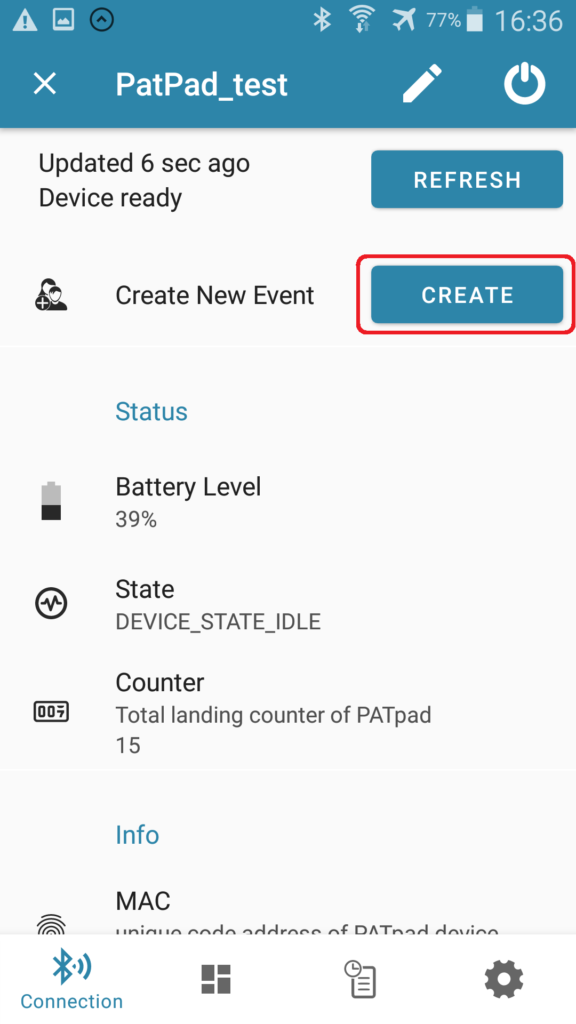

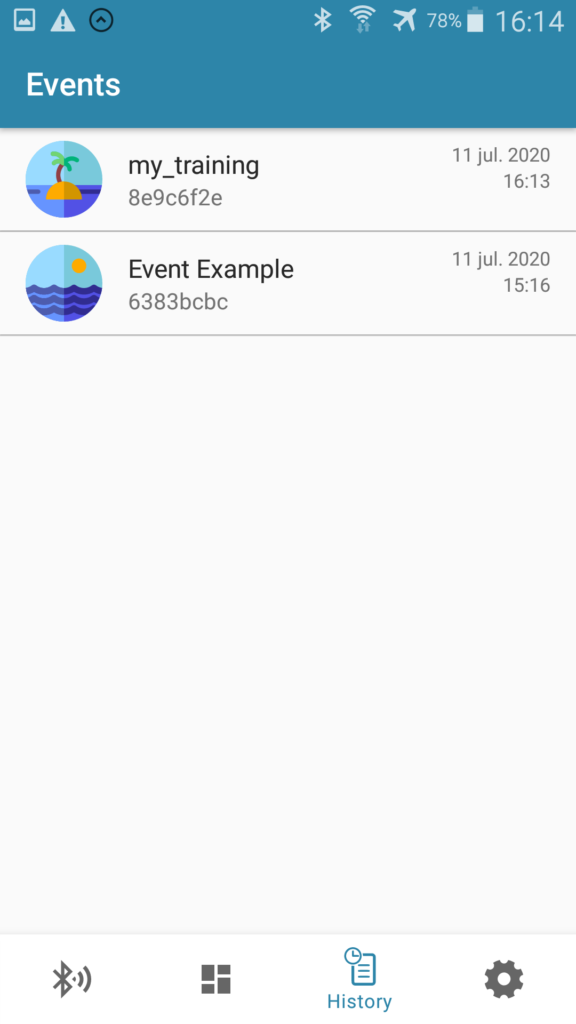

  • Additionally to that, a staff/judge person can connect to the PATpad with Android mobile device. In the app create an Event where the whole History of results will be stored. This can be used as a back-up monitoring of the results.

3. Important

  • If manual measurement of the landing is necessary, make sure you are not pressing the result #4. Long press to the result #4 leads to the hard reset of the PATpad.
  • It is not possible to switch-off the PATpad (by pressing 0) when connected to the Display.
  • If you want to replace the PATpad, reset and re-establish the connection to the Display:
    • Display reset: press and hold  button for 10 seconds.
    • PATpad reset: press and hold white zero dot for 10 seconds.

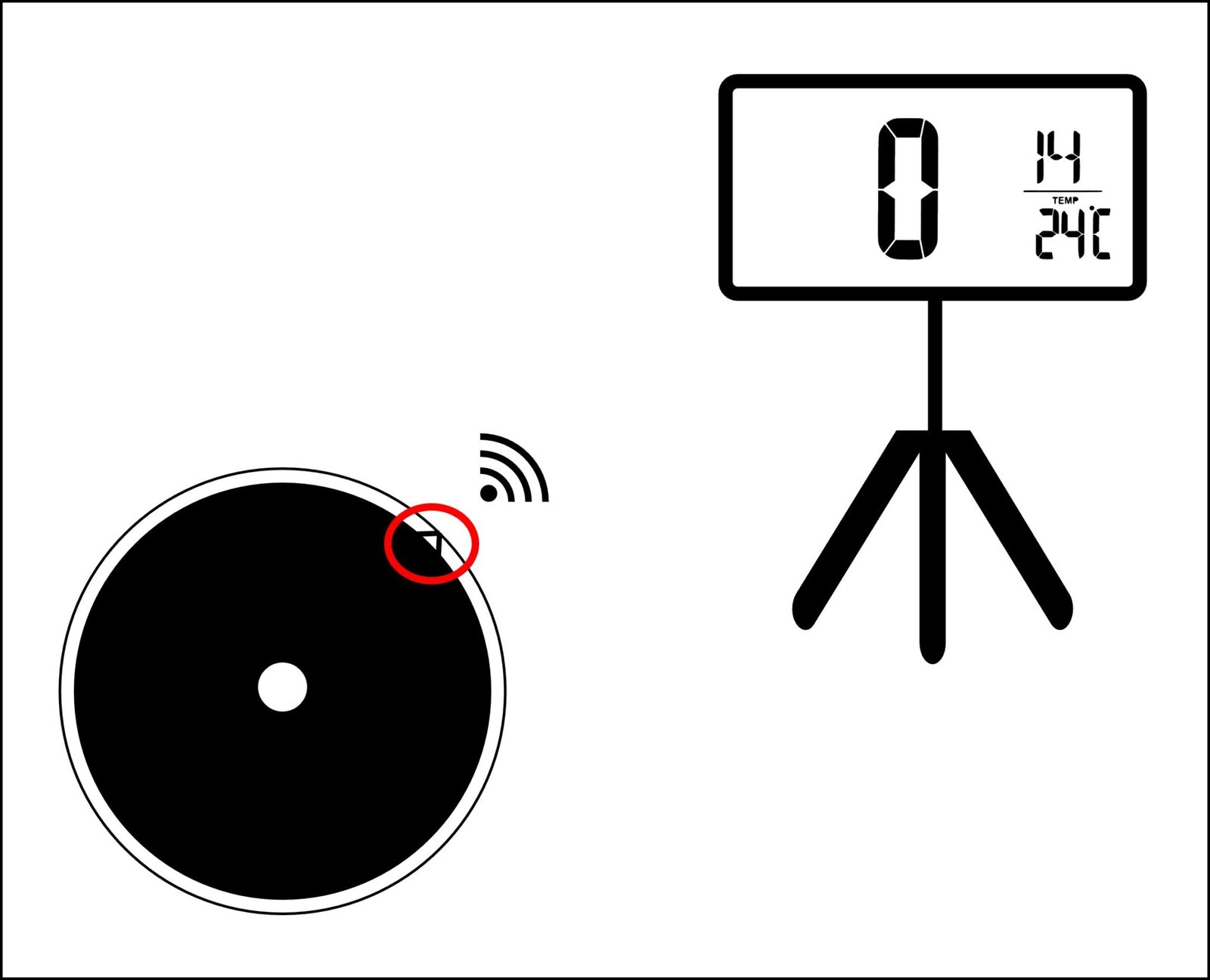

  • In order to maximize the range, direct the PATpad arrow to the Display. Tilt the Display slightly back to improve visibility.

4. Detailed instructions

*************************************************************************************************************

Conditions of use

  • Important: Never use rigid shoes or rigid extensions (please follow FAI rules about the rubber extensions),
  • Always put the PATpad or BASEplate on flat surface without sharp objects underneath,
  • Do not charge the battery during usage of PATpad,
  • Always charge the PATpad/Display over USB port and attached cable,
  • Storing/operating temperature: 0-40 °C,
  • Storing/operating humidity: 0-80 %,
  • Avoid long term exposures to direct sun (cover the PATpad during competition breaks),
  • Do not use the PATpad/Display in harsh outdoor conditions (rain, snow, dew, hail, etc.),
  • Do not put other objects on the PATpad/Display when storing,
  • Clean the PATpad with damp cloth when necessary.
